HydroMax Seal STAN12-TCC | 12L Thermosyphon Water/Oil Management System for Double Mechanical Seals

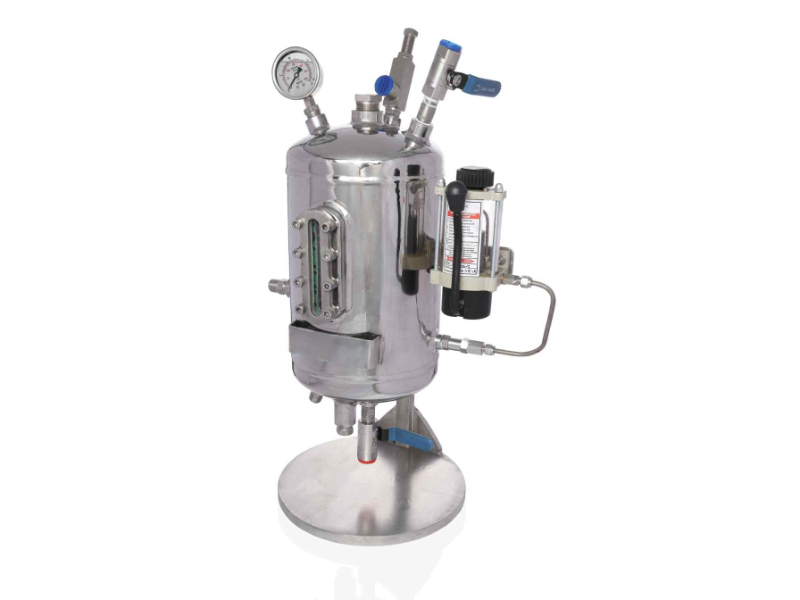

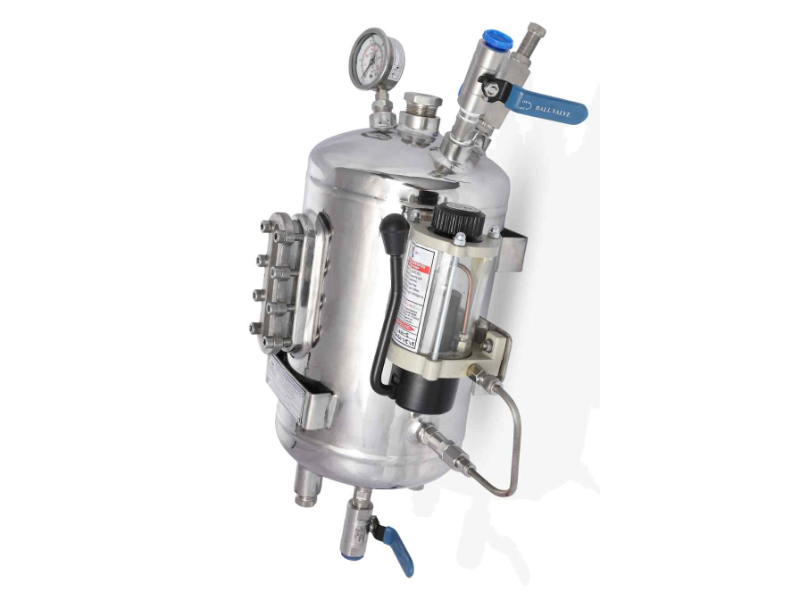

The STAN12-TCC is a 12-liter thermosyphon thermal management system engineered for use with double mechanical seals, using water or oil as the barrier fluid. Built from 316 stainless steel, this compact unit offers efficient convection-based circulation for cooling and lubricating mechanical seals in a wide range of industrial applications.
This system features an internal heating and cooling coil, a hand pump, and a weld pad sight glass, making it suitable for precise fluid management. It comes fully assembled and factory tested, with optional PED certification available.
Product Description
Design Features
- Designed for double mechanical seal support
- Supports water and oil barrier fluids
- 12-litre capacity with integrated heating/cooling coil
- Includes hand pump and weld pad sight glass for monitoring
- Wall or stand mountable with included bracket
- Supplied fully tested and assembled
- Complies with PED (optional) for pressurized systems
- Premium 316 stainless steel construction for corrosion resistance
Technical Specifications
- System Vessel Size:
12 Litres (3.17 US Gallons) - Pressures:
up to 20 Barg (290 psig) - Instrumentation:
- Pressure Gauge
- Pressure Relief Valve (PRV)
- Vessel Drain Valve
- 2 & 3-Way Lever Valves
- Pipework & Fittings:
Stainless steel braided pipework with S/S fitting connections - Temperatures:
up to 200°C (392°F) - Material of Construction:
316 Stainless Steel
System Supply Options
- Finned Tubing available for additional heat dissipation
Installation Tips
Ensure the connecting pipework between the reservoir and seal is free from sags or kinks to enable uninterrupted thermosyphon circulation.
The HydroMax STAN12-TCC is a compact yet powerful solution for consistent thermal regulation in dual mechanical seal systems.
