Overview

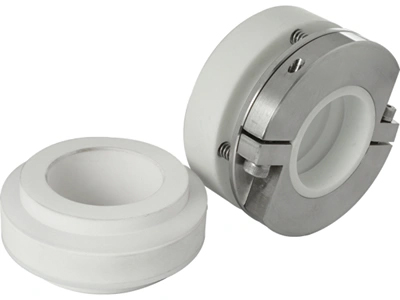

HydroMax Seal EMD-30 | Multi-Spring Teflon Bellows Component Seal
The EMD-30 is a multi-spring, external component seal equipped with a composite Teflon bellows. Designed for parallel shaft configurations, it uses a collet clamp drive and contains no elastomers, making it highly suitable for chemically aggressive or ultra-clean applications.
Featuring a monolithic seal face and supplied with a stationary seat as standard, the EMD-30 offers reliable sealing performance across a range of medium-pressure, moderate-temperature conditions.
Product Description
Design Features
- External seal design for parallel shafts
- Composite Teflon (GFT) bellows – chemically resistant and elastomer-free
- Multi-spring configuration for consistent axial load distribution
- Collet clamp driven for positive shaft engagement
- Monolithic seal face enhances durability and high-temperature stability
- Supplied with a stationary seat as standard
Technical Specifications
| Seal Shaft Sizes | 25mm – 100mm (1.000″ – 4.000″) |
| Inboard Seal Face Combinations | GFT/Cer GFT/SiC |
| Bellows Material | Composite GFT (Glass Filled Teflon) |
| Shaft Speeds | Up to 20 m/s |
| Pressures | Up to 5 Barg (73 psig) – Shaft Size Specific |
| Temperatures | Up to 110°C (230°F) |
HydroMax Seal offers a wide range of Teflon and metal bellows component seals, tailored to meet the performance demands of corrosive, abrasive, and high-purity environments.
