SPW682-132 – Single Cartridge Mechanical Seal
SPW682-132 – Single Cartridge Mechanical Seal
Overview

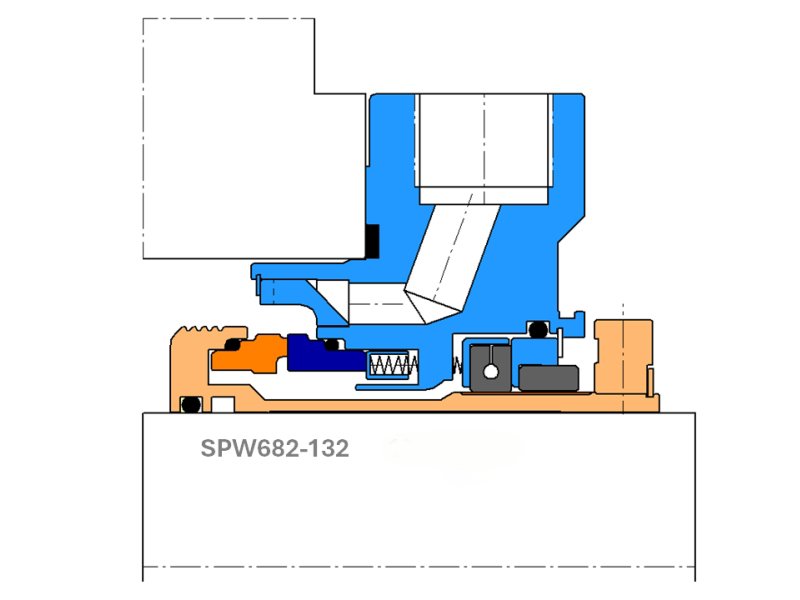

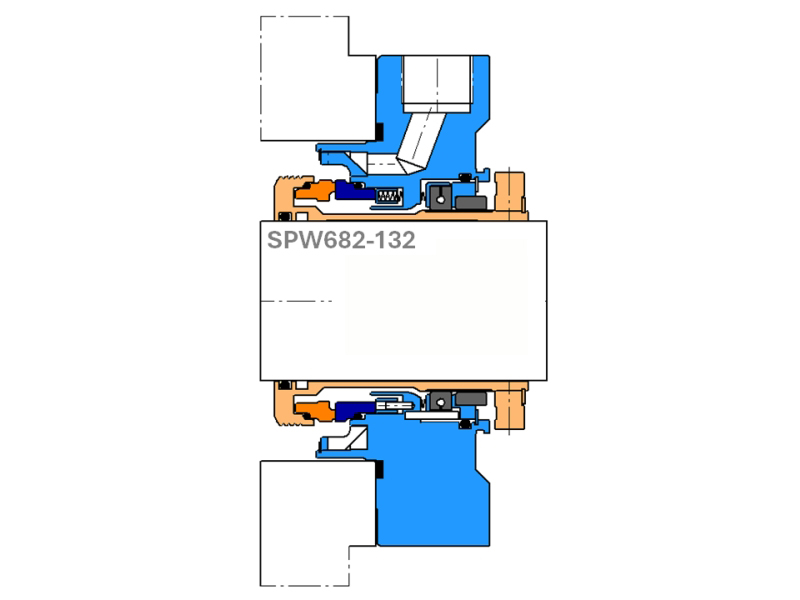

The SPW682-132 from HydroMax Seal is a robust single-cartridge mechanical seal engineered to meet the rigorous standards of API682, making it ideally suited for applications in the Oil & Gas industry. Designed for use in API Plan 32 piping arrangements on API610 V8 and newer process pumps, this seal offers superior sealing performance in challenging operating environments.
This complete cartridge solution features a stationary seal design and incorporates critical best-practice elements to ensure optimal reliability, thermal performance, and resistance to process contaminants.
Product Description
Design Features
- Multi-port flush orifice for Plan 32 systems — delivers a uniform spray of clean, cooling, and lubricating fluid to the inboard seal faces, especially beneficial for process media with suspended solids
- Quench and drain orifices support Plan 62 or Plan 52 systems — integrated deflector guides steam or buffer fluid to the inboard faces
- 1/2″ NPT large seal port orifices for efficient fluid handling
- Gland plate with multi-port flush ring ensures consistent flow across the sealing interface
- Radial clearances between rotary and stationary components conform to API 682 best practice standards
- Monolithic seal faces enhance thermal resistance and durability under high-temperature conditions
- Self-aligning stationary face design — optimized for high-speed applications
- Multi-spring configuration with isolated springs (non-contact with process fluid) for extended service life
- Advanced restriction bushing assembly — includes both a segmented bush and a floating restriction bush for improved outboard sealing efficiency

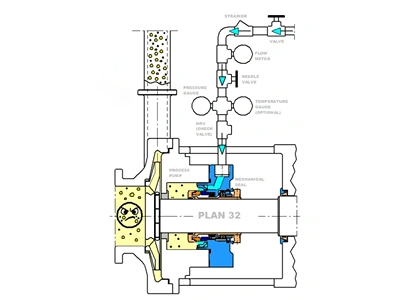

- Fully compatible with HydroMax Seal’s Plan 32 accessory kit, featuring an integrated pressure gauge, flow meter, valves, and an inline strainer
Technical Specifications
| Seal Shaft Sizes | All supported |
| System Vessel Sizes | 3.17 gallons and 7.40 gallons |
| Inboard Seal Face Combinations | TC / TC Carbon / TC Antimony Carbon / RB SiC |
| Gasket Material | Spiral Wound Stainless Steel with Graphite |
| Secondary Sealing Materials | Viton, Alfas, ERP, Kalrez |
| Maximum Shaft Speed | Up to 4,000 RPM |
| Maximum Pressure | Up to 40 Barg |
| Instrumentation | Designed for Plan 32 system integration |
| Temperature Rating | Up to 302°F |
Important Notice
The SPW682-132 is a premium seal solution that reflects HydroMax Seal’s commitment to API-compliant engineering and operational excellence. For detailed design resources and technical documentation, refer to our engineering blog or speak with a HydroMax technical specialist.
Typical Applications & Industry Use Cases
The SPW682-132 is a single-cartridge mechanical seal built to comply with API 682 standards and designed for demanding pump services (including API 610 V8 and above pumps). Its configuration — with a multi-port flush ring in the gland plate and an external segmented + floating restriction bush — makes it especially suited for services that handle fluids with suspended particles or solids, or that require clean flush/buffer fluid support.
Industries Served
Oil & gas and petrochemical
process pumps, transfer pumps, hydrocarbon services where flush/flush-support and reliable sealing are critical.
Chemical processing
centrifugal pumps handling particulate-bearing or contaminated fluids, requiring flush or buffer fluid support to protect seal faces.
Mining, mineral processing & slurry services
applications involving abrasive or solids-loaded fluids where flush/separator support helps manage contamination risk.
Water, wastewater, and general process industries
pumps in systems where cleanliness, flush support, and reliable sealing performance under variable conditions matter.
Equipment & Use-Case Scenarios
- Centrifugal/process pumps with narrow or standard seal-chamber envelopes needing a reliable single-seal solution compliant with API 682.
- Systems where flush, quench, or buffer fluid support (e.g, Plan 32, Plan 52/53 variants) is employed to maintain seal-face lubrication and cleanliness — especially important in fluids containing solids or contaminants.
- Applications with moderate to high shaft speeds (design supports up to ~4,000 rpm), where stable, well-balanced seal face loading and self-aligning stationary faces help manage shaft movement, thermal expansion, or misalignment.
- Situations where maintenance downtime must be minimized: the cartridge-style, pre-assembled seal simplifies installation and replacement compared to traditional component-style seals, reducing installation errors and service time.
Why It Fits These Applications
- The multi-port flush ring delivers a “shower” of clean, cooling, and lubricating fluid to the inboard seal faces when process fluids contain suspended particles — protecting the seal faces from abrasion or contamination.
- Large ½″ NPT port orifices provide adequate flow capacity for flush/buffer systems, enabling effective flush, quench, or buffer-fluid circulation and stable lubrication across varying operating conditions.
- Monolithic, self-aligning stationary seal face design, together with balanced face loading, offers stability under pressure, temperature fluctuations, and shaft variability — reducing the risk of seal failure in harsh or fluctuating environments.
- Cartridge construction (pre-assembled unit) significantly reduces installation error, simplifies maintenance, and lowers lifecycle costs compared with traditional multi-component seals.
Installation Guidelines
Begin with a thorough inspection of the pump shaft, seal-chamber bore, and gland face. Ensure they are clean, free of scoring or corrosion, and within specified tolerances. Misalignment or surface defects at installation drastically reduce seal life.
Carefully slide the SPW682-132 cartridge into the gland or seal housing. Ensure the correct orientation of the flush/buffer/quench/drain ports as per your support system plan (e.g., Plan 32, Plan 52/53). Make sure the gland plate’s multi-port flush ring is properly aligned.
- Connect the flush/buffer circulation lines: supply, return, venting, and filtration as per your sealing plan. Prime and vent the flush fluid to avoid dry running before startup. Verify that flow, pressure, and fluid cleanliness are stable before engaging full pump operation.
Record baseline operating parameters — flush flow, flush/buffer fluid pressure and temperature, seal-face temperature (if available), shaft speed — to support future monitoring and preventive maintenance scheduling.
Maintenance & Inspection Best Practices
- Regularly monitor the flush/buffer loop: ensure the flow remains consistent, the pressure drop across filters or strainers is within acceptable limits, and the fluid remains clean and temperature-stable. Any decline may indicate deposition, contamination, or seal-face wear.
- During planned shutdowns (or when safe), remove the cartridge to inspect seal faces for wear, scoring, or erosion; check secondary sealing elements (O-rings, gaskets) for condition; inspect the gland insert and restriction bush for clogging or damage.
- Maintain a comprehensive log of operational data: fluid properties (chemistry, solids content), operating conditions (pressure, temperature, speed), start-stop cycles, flush loop performance, and maintenance events. Use this data for trending, predictive maintenance, and early detection of potential issues.
- Replace secondary seals (O-rings, gaskets) and refresh flush/buffer fluid and filters on a preventative schedule, not just on failure — good fluid cleanliness and support conditions significantly extend seal life.
- If process conditions change — e.g., fluid becomes more abrasive, solids content increases, temperature or pressure rises, or shaft speed increases — re-evaluate seal suitability, flush plan, and material compatibility. Consider upgrading to more robust face materials or alternate sealing configurations if required.
Service & Support Options
- Pre-installation technical review: help specify correct face material, elastomer selection, flush/buffer plan, and port orientation based on your process fluid, pressure, temperature, and duty cycle.
- Commissioning support: assist in flush/buffer loop setup, venting, initial flow/pressure verification, and monitoring during first run to validate seal performance and installation integrity.
- Spare-part kits: include seal faces, gland inserts, O-rings/gaskets, restriction-bush components, flush-ring hardware — for faster maintenance recovery and minimized downtime.
- Upgrade or re-specification services: if operating conditions become more demanding (abrasive media, higher pressure/temperature, changes in solids content), options include moving to more abrasion-resistant materials or adopting alternate seal designs.
- Preventive-maintenance and condition-monitoring programmes: periodic inspections, trend analysis, and performance reviews to maximize mean time between maintenance (MTBM), reduce unplanned downtime, and optimise total lifecycle cost.
