Overview

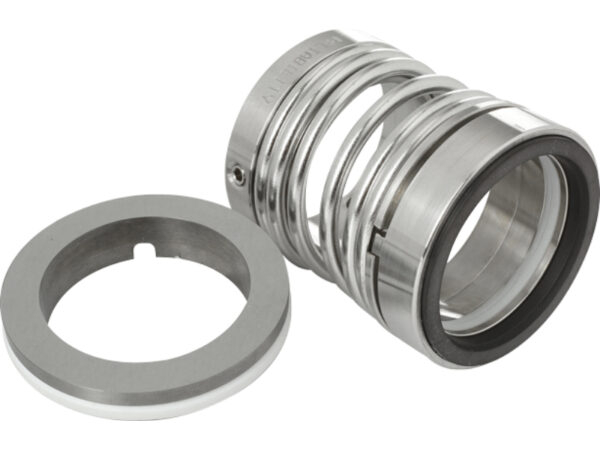

The RPW-021 is a SINGLE COIL SPRING SEAL WITH ‘V’ PACKING – UNI-DIRECTIONAL.
Internal Wet Seal with Shrink Fitted Rotary Head for Parallel shafts with V Packing. A Single Spring design with Set Screw Drive (Standard w/length).
Product Description
Technical Specifications
| Seal Shaft Sizes | 1.000″ – 4.000″ (12mm – 100mm) |
| Inboard Seal Face Combination | Car/TC and Car/SiC |
| Elastomers | V-Packing (PTFE) |
| Shaft Speeds | Up to 10 m/s |
| Pressures | Up to 8 barg (116 psig) – Shaft Size Specific |
Typical Applications & Industry Use Cases
The RPW-021 is a single-spring, internally mounted mechanical seal designed for general-purpose fluid handling. Its compact construction, straightforward spring design, and reliable rotary face geometry make it ideal for pumps operating under light- to moderate-duty conditions. The seal provides reliable performance in applications where simplicity, ease of installation, and cost-effectiveness are important.
Industries Served
Water supply and utility pumping
HVAC and building services
Light industrial fluid transfer
Food, beverage, and light chemical handling (depending on material compatibility)
General manufacturing and equipment requiring economical sealing solutions
Equipment & Use-Case Scenarios
- Small and medium centrifugal pumps with moderate pressure and temperature conditions
- Low-viscosity and clean fluids where single-spring seals perform efficiently
- Pumps that may experience mild vibration or intermittent operation
- OEM units that require a compact, dependable, and replaceable sealing element
- Systems running lower duty cycles or operating under standard, stable conditions
Why It Fits These Applications
- The single coil spring design ensures consistent loading of the seal faces while keeping the mechanism simple and easy to service.
- Compact structure allows installation in equipment with limited stuffing-box space.
- Minimal components reduce failure points and simplify maintenance and replacement.
- Widely compatible with common pump designs, making it a versatile seal for general industrial and utility services.
- Ideal for cost-sensitive applications where reliability is required but heavy-duty sealing is not.
Installation Guidelines
Clean and inspect the shaft, seal chamber, and gland areas to ensure smooth, corrosion-free seating surfaces.
Lubricate compatible elastomers lightly to ease installation and prevent twisting or damage during assembly.
Position the seal squarely on the shaft and ensure the spring is compressed evenly for proper face alignment.
Tighten hardware uniformly to avoid cocking the seal faces or creating uneven axial loading.
Perform a slow startup to confirm proper sealing, monitoring temperature, vibration, and leakage during the first operational cycle.
Maintenance & Inspection Best Practices
- Inspect seal faces for wear, scoring, or glazing during routine maintenance; proactively replace components as needed.
- Check the spring for corrosion or fatigue, especially in applications with variable or high-temperature conditions.
- Monitor elastomer components for hardening, swelling, or cracking caused by chemical or thermal exposure.
- Keep the pump alignment in check — excessive vibration accelerates seal-face and spring wear.
- Maintain a service record to track seal life trends and plan change-outs before failure.
Service & Support Options
- Material selection guidance to ensure compatibility with the pumped fluid and temperature range.
- Availability of replacement seal faces, elastomers, and springs for fast turnaround during maintenance.
- Installation support for verifying proper alignment and ensuring leak-free commissioning.
- Preventive maintenance planning based on runtime, duty cycle, and fluid chemistry.
- Guidance for upgrading to multi-spring or bellows-type seals if operating conditions become more demanding.
