Overview

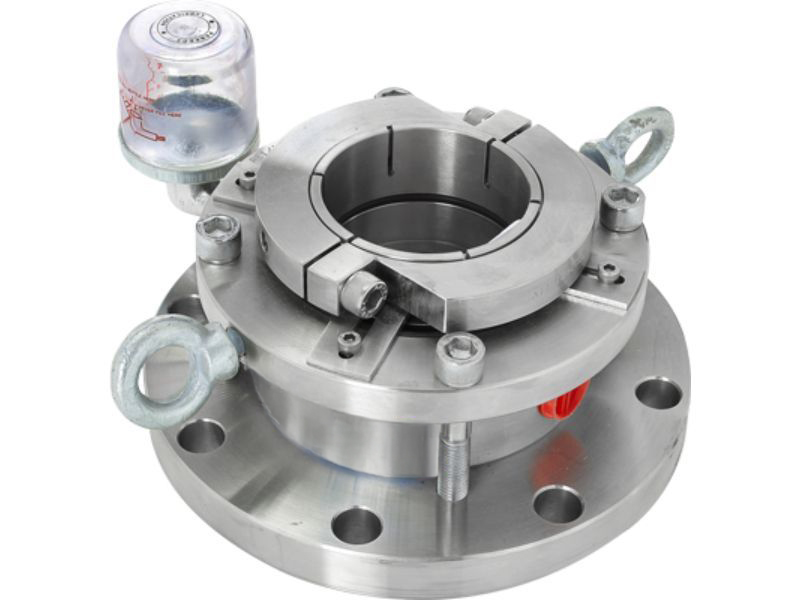

HydroMax Seal GLR-170 | Single Dry Cartridge Seal for Glass Lined Reactors
The GLR-170 is a multi-spring, single dry cartridge seal assembly with a bearing housing, integral oiler, and drive collar.
The Glass Lined Reactor (GLR) External 170 Single Dry Cartridge Seal Assembly is suitable for stepped shaft applications.
It features a long working length with monolithic rotary seal faces and a monolithic clamped stationary face.
The seal has a number of design features, comes factory assembled and tested, and has been successfully installed in hundreds of GLR applications.
Product Description
Technical Specifications
| Seal Shaft Sizes | 1.57″ – 5.51″ |
| Inboard Seal Face Combinations | Car/Cer Car/SiC |
| Gasket | GFT |
| Elastomers | Viton ERP Aflas Kalrez |
| Shaft Speeds | Up to 10 m/s |
| Pressures | Up to 6 barg (90 psig) |
| Temperatures | 30 – 180°C (86 – 356°F) |
WARNING:
The safe seal performance characteristics are typical values for each variable in isolation. The individual upper limit values of speed, pressure, and temperature should NOT be used in combination.
