Single Mixer Mechanical Seal – EMD-150B
Single Mixer Mechanical Seal – EMD-150B
Overview

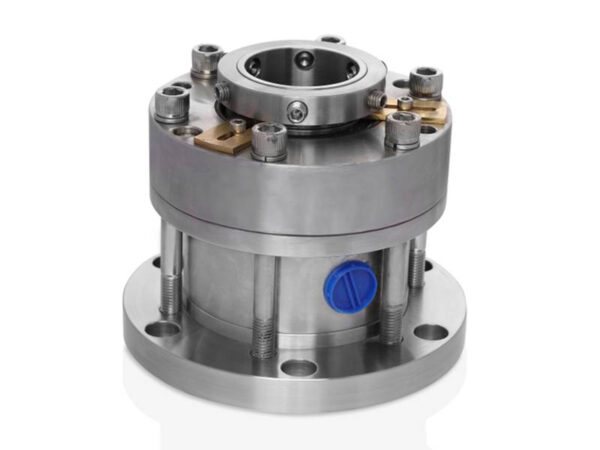

HydroMax Seal EMD-150B | Single Dry Cartridge Seal with Integral Bearing
The EMD-150B is a multi-spring, single dry cartridge seal with an integral bearing.
This Stainless Steel External Single Dry Seal Cartridge Assembly features a monolithic rotary seal face and a shrink-fitted, clamped stainless steel stationary, along with a gland plate and bearing housing.
The seal has a number of design features, comes factory assembled and tested, and has been successfully installed in hundreds of applications.
Product Description
Technical Specifications
| Seal Shaft Sizes | 0.79″ – 5.91″ (further sizes can be designed as required) |
| Inboard Seal Face Combinations | Car/TC |
| Gasket | GFT |
| Elastomers | Viton ERP Aflas Kalrez |
| Shaft Speeds | Up to 10 m/s |
| Pressures | Up to 6 barg (90 psig) |
| Temperatures | 30 – 180°C (86 – 356°F) |
WARNING:
The safe seal performance characteristics are typical values for each variable in isolation. The individual upper limit values of speed, pressure, and temperature should NOT be used in combination.
