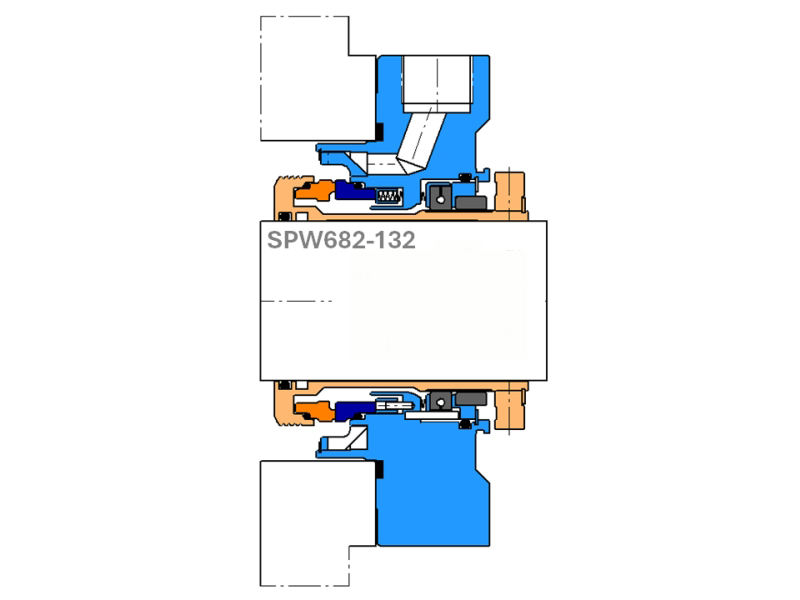

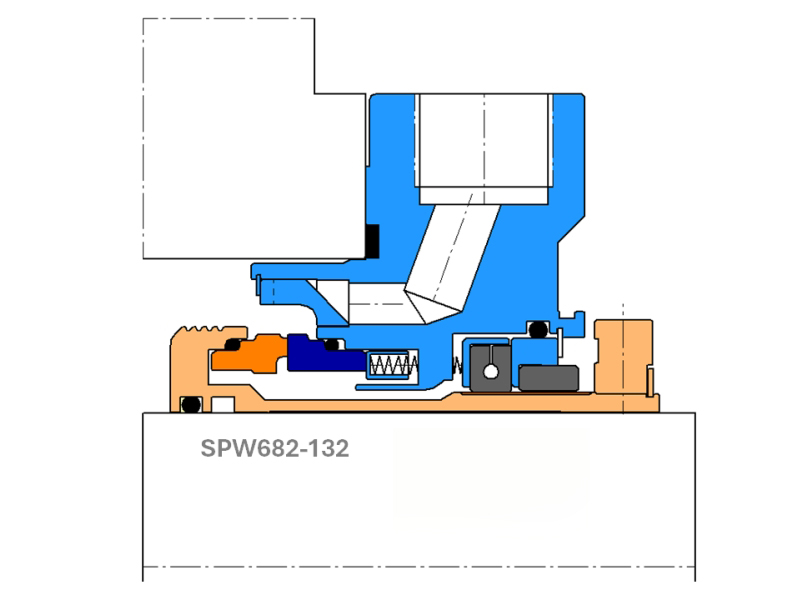

HydroMax Seal SPW682-132 | API682-Compliant Single Cartridge Seal for Plan 32 Systems
The SPW682-132 is a high-performance single-cartridge mechanical seal designed with a multi-port flush ring in the gland plate and a unique combination of segmented and floating outboard restriction bushes. Engineered to meet API682 specifications, this seal is optimized for critical Oil & Gas applications and is compatible with API Plan 32 arrangements on API610 V8+ process pumps.
The stationary cartridge configuration is fully assembled and tested, making it an ideal solution for high-speed and particle-laden process fluid environments.
Product Description
Design Features
- Multi-port flush orifice in the gland plate delivers a uniform shower of clean, cooling, and lubricating fluid to inboard seal faces—ideal for suspended particle applications
- Quench and Drain ports support Plan 62 or 52 configurations; integral deflector ensures directed delivery of buffer or steam fluid
- Large 1/2″ NPT seal port orifices for improved system compatibility
- Gland plate includes a multi-port flush ring for enhanced fluid distribution
- API682-compliant radial clearances between rotary and stationary components
- Monolithic seal faces offer superior high-temperature durability
- Stationary seal design with self-aligning stationary face ensures stability in high-speed applications
- Multi-spring configuration with springs isolated from the process fluid
- Segmented + floating outboard restriction bush combo delivers exceptional performance and reliability

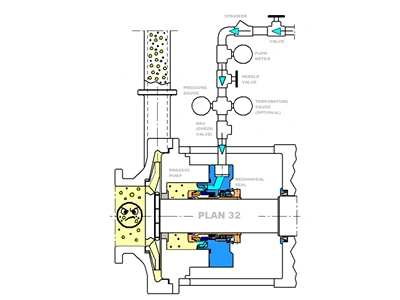

- Compatible with Plan 32 kits, including pressure gauge, valves, flow meter, and strainer
Technical Specifications
| Seal Shaft Sizes | All |
| System Vessel Size | 3.17 US gallons and 7.40 US gallons |
| Inboard Seal Face Combinations | TC/TC Car/TC Ant.Car/RB SiC |
| Gasket | Spiral Wound Stainless Steel, Graphite |
| Secondary Sealing | Viton Alfas ERP Kalrez |
| Shaft Speeds | Up to 4,000 rpm |
| Pressures | Up to 580.2 psig |
| Instrumentation | Used with Plan 32 piping systems |
| Temperatures | Up to 302°F |
The SPW682-132 is a robust and innovative stationary seal solution, purpose-built for API682 compliance in demanding process environments
