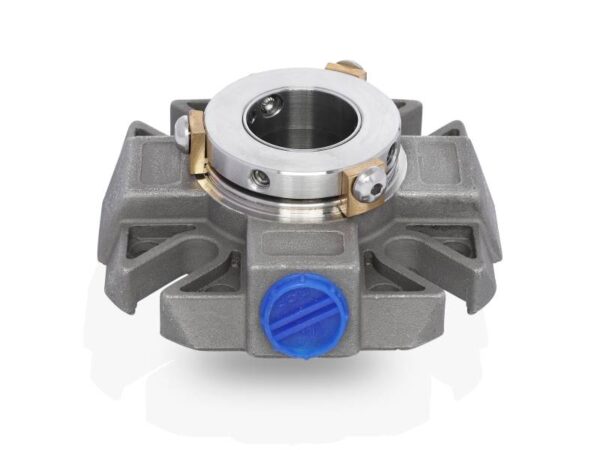

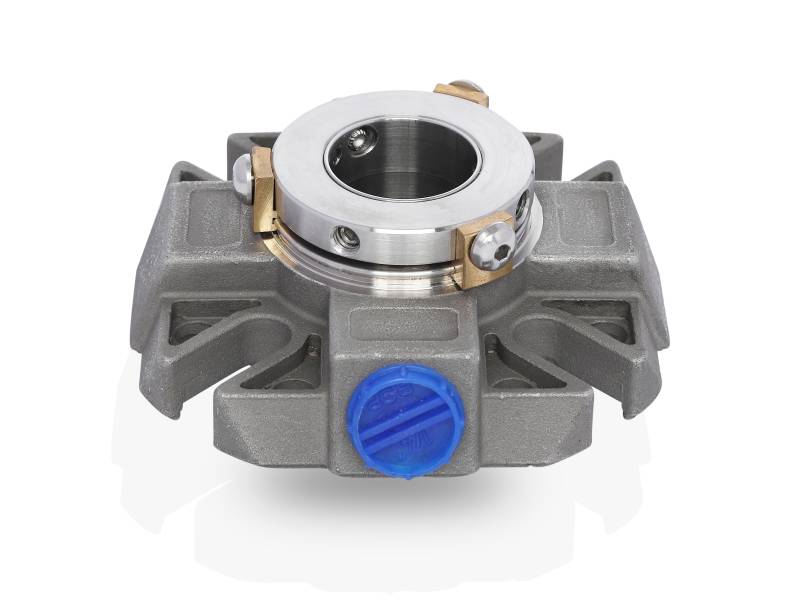

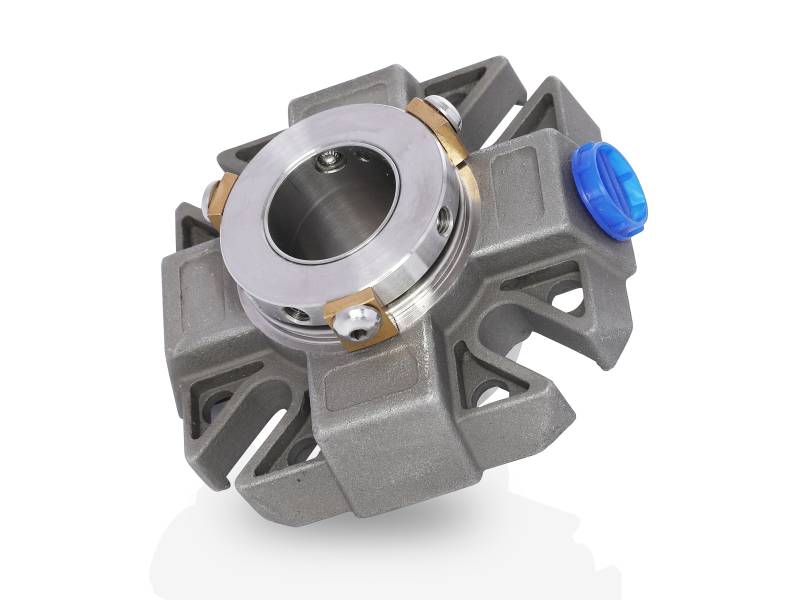

HydroMax Seal RPW-125 | Multi-Spring Single Cartridge Seal with Flush, Quench & Drain Ports
The RPW-125 is a multi-spring, hydraulically balanced single-cartridge mechanical seal designed for robust and efficient sealing in rotating equipment with parallel shafts. Engineered with shrink-fitted seal faces and O-ring secondary seals, this seal is equipped with flush, quench, and drain environmental ports, along with a restriction bush for enhanced seal chamber control.
Factory assembled and tested, the RPW-125 offers reliable performance across a wide range of industrial applications.
Product Description
Design Features
- Hydraulically balanced cartridge seal for stable operation
- Multi-spring configuration ensures even face loading
- Flush, quench, and drain ports for API-compatible environmental control
- Set screw driven for positive shaft engagement
- Shrink-fitted seal faces with O-ring secondary sealing
- Restriction bush included for pressure management
- Supplied factory assembled and performance-tested
Technical Specifications
| Seal Shaft Sizes | 20mm – 100mm (1.000″ – 4.000″) |
| Inboard Seal Face Combinations | Car/TC Car/SiC TC/TC TC/SiC SiC/SiC |
| Gasket Options | GFT AF1 |
| Elastomers | Viton ERP Aflas Kalrez |
| Shaft Speeds | Up to 20 m/s |
| Pressures | Up to 290.1 psig – Shaft Size Specific |
| Temperatures | Up to 110°C (230°F) |
WARNING:
The safe seal performance characteristics listed above are typical for each variable considered independently. Do not exceed the upper limits of speed, pressure, and temperature at the same time.
Typical Applications & Industry Use Cases
The RPW-125 Single Cartridge Mechanical Seal is a multi-spring, hydraulically balanced single-cartridge seal designed for robust, efficient sealing in parallel-shaft rotating equipment. It features flush, quench, and drain ports, O-ring secondary sealing, and a restriction bush for enhanced fluid control in the seal chamber. The seal is factory assembled and tested, offering reliable performance and simplified installation.
Industries Served
Chemical and petrochemical processing
Water and wastewater treatment
Industrial and utility pumping systems
Refining and hydrocarbon transfer systems
Power generation and utility services
General fluid handling and OEM applications
Equipment & Use-Case Scenarios
- Parallel-shaft centrifugal and process pumps requiring dependable internal wet sealing
- Applications benefitting from controlled flush or environmental port fluid circulation
- Services operating under moderate pressures and temperatures with lubrication and cooling needs
- Installations where a ready-to-install cartridge seal reduces downtime and simplifies maintenance
Why It Fits These Applications
- Hydraulically balanced design: Reduces seal face loading and improves stability across varying operating conditions
- Multi-spring configuration: Promotes even loading on seal faces for extended service life
- Flush, quench, and drain ports: Enable effective fluid management and environmental control
- O-ring secondary seals: Provide dependable dynamic sealing and accommodate shaft irregularities
- Restriction bush: Helps regulate pressure and protect secondary sealing elements
- Factory-assembled cartridge: Minimises installation errors and shortens maintenance time
Installation Guidelines
Pre-Installation Preparation
Clean the pump shaft, seal chamber bore, and gland surfaces thoroughly. Remove corrosion, debris, or surface defects to ensure proper alignment and ensure surface contact for sealing.
Cartridge Installation
Insert the RPW-125 cartridge seal into the seal housing. Confirm that flush, quench, and drain ports are correctly oriented for the piping plan. Tighten set screws evenly to secure the cartridge without distortion.
Alignment & Fit
Ensure the cartridge is fully seated against the gland face and correctly aligned to maintain uniform seal face contact during operation.
Startup Procedure
Initiate flush circulation before bringing the pump to full operating speed and pressure. Monitor the seal area for leakage, vibration, or abnormal temperature before placing the equipment into continuous service.
Maintenance & Inspection Best Practices
- Routine Visual Inspections: Check regularly for leakage, vibration, or temperature variation around the seal
- Seal Face Monitoring: Inspect faces during scheduled shutdowns for wear, scoring, or deposit buildup
- Secondary Seal Care: Examine O-rings for hardening, cracking, or deformation and replace as required
- Operating Logs: Record pressure, temperature, and shaft speed to support predictive maintenance planning
- Spare Parts Management: Maintain replacement springs, secondary seals, and cartridge components to minimise downtime
Service & Support Options
- Application Review: Verify seal materials and configuration match fluid chemistry and operating conditions
- Installation Support: Technical assistance to ensure proper setup and first-run reliability
- Preventive Maintenance Scheduling: Establish inspection and replacement intervals based on service severity
- Performance Upgrade Evaluation: Consider enhanced materials or alternate designs if operating conditions become more demanding
