Overview

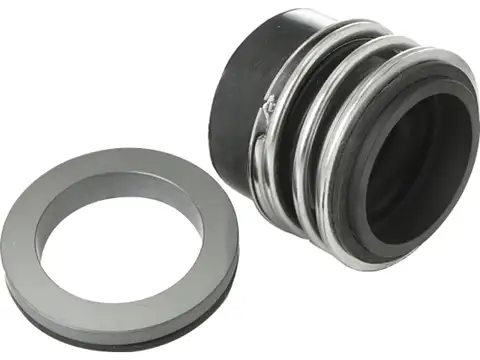

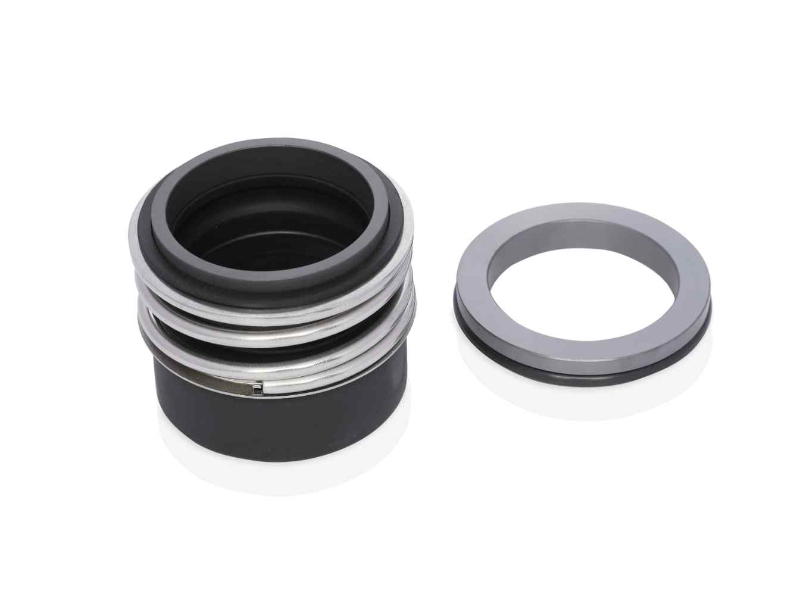

HydroMax Seal RBT-13 | Rubber Bellows Component Seal with Single Parallel Spring
The RBT-13 is a rubber bellows component seal featuring a single parallel spring design. Engineered with a friction-drive collar, this seal transfers torque effectively from the shaft to the seal faces. It includes a monolithic seal face for thermal stability and comes standard with a stationary seat.
Dimensionally equivalent to the Burgmann MG13, the RBT-13 is ideal for general-purpose sealing applications in water, chemical, and light industrial services.
Product Description
Design Features
- Single parallel spring with rubber bellows for compact, flexible sealing
- Friction-drive collar engages securely with the shaft
- Monolithic seal face improves thermal and mechanical performance
- Supplied with the stationary seat as standard
- Dimensionally equivalent to Burgmann MG13
- Suitable for pumps handling clean or slightly contaminated fluids
Technical Specifications
| Seal Shaft Sizes | 12mm – 55mm |
| Inboard Seal Face Combinations | Car/SiC, Car/Cer, SiC/SiC |
| Bellows Material | EPDM |
| Shaft Speeds | up to 10 m/s |
| Pressures | up to 12 Barg (174 psig) – Shaft Size Specific |
HydroMax Seal RBT-13 is a dependable and easy-to-install mechanical seal solution, delivering versatile performance across a wide range of pump applications.
