Rubber Bellows: RBT-13
Rubber Bellows: RBT-13

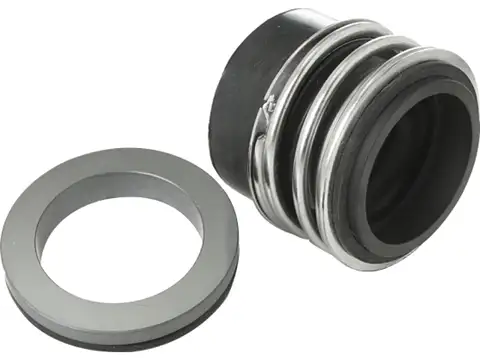

The RBT-13 is designed with a parallel single spring and is supplied with a rubber bellows and friction-drive collar which engages with the shaft to provide rotational movement to the seal faces.
The seal has a number of design features including a monolithic seal face and is supplied with a stationary seat as standard and is dimensionally equivalent to the Burgmann MG13.
Product Description
Technical Specifications
- Seal Shaft Sizes:
12mm – 55mm - Inboard Seal Face Combination:
Car/SiC, Car/Cer, SiC/SiC - Bellows:
EPDM - Shaft Speeds:
up to 10 m/s
Pressures:
up to 12 barg (174 psig) – Shaft Size Specific
