Overview
HydroMax Seal IPW-021 | Multi-Spring Internal Wet Seal Assembly with PTFE Wedge Packing
The IPW-021 is a multi-spring mechanical seal assembly designed for internal wet sealing on parallel shafts, featuring a monolithic rotary head and PTFE wedge packing for enhanced chemical resistance. This seal is set screw driven and manufactured in standard working lengths.

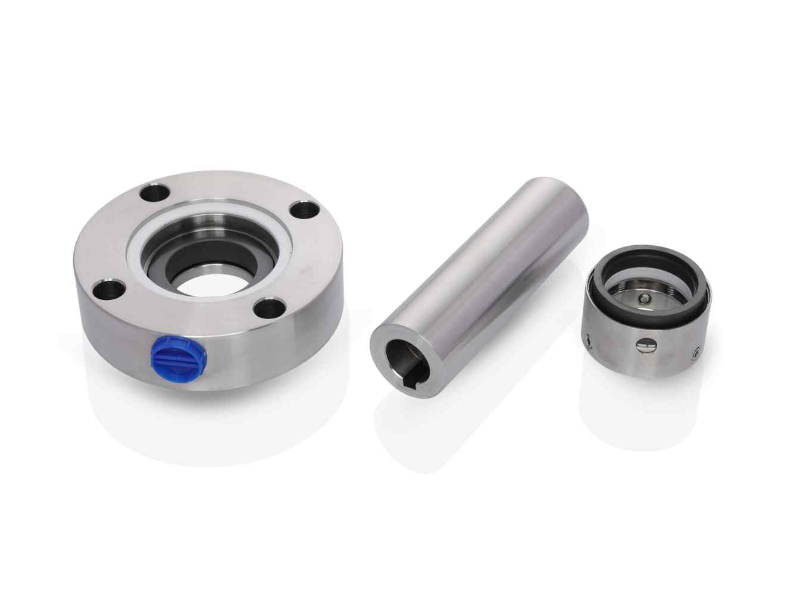

It is dimensionally interchangeable with JC Type 9 component seals and is supplied with a stationary seat as standard. Optional components such as a gland plate, stationary, and equipment sleeve can be provided to suit your specific equipment configuration.
Product Description
Design Features
- Multi-spring configuration for uniform face pressure
- Monolithic rotary head for improved thermal and mechanical performance
- PTFE wedge packing for superior chemical compatibility
- Set screw drive for secure shaft connection
- Interchangeable with JC Type 9 mechanical seals
- Optional gland plate, stationary, and sleeve are available
- Supplied with a stationary seat as standard
Technical Specifications
| Seal Shaft Sizes | 12mm – 100mm (1.000″ – 4.000″) |
| Inboard Seal Face Combinations | Car/TC Car/SiC |
| Secondary Sealing | PTFE |
| Shaft Speeds | Up to 20 m/s |
| Pressures | Up to 5 Barg (72 psig) – Shaft Size Specific |
HydroMax Seal IPW-021 provides a durable and chemically resistant solution for applications that require internal sealing performance in corrosive or high-purity environments.
Typical Applications & Industry Use Cases
The IPW-021 Multi-Spring Mechanical Seal is a durable industrial internal wet seal designed for parallel-shaft rotating equipment. It features a multi-spring configuration that delivers uniform face loading and a monolithic rotary head for improved thermal and mechanical performance. The seal uses PTFE wedge packing for enhanced chemical compatibility and is set-screw driven for secure shaft engagement. It is supplied with a stationary seat as standard and is dimensionally interchangeable with common JC Type 9 component seals.
Industries Served
Chemical processing and corrosive fluid services
Water and wastewater treatment
Industrial pumping and fluid transfer systems
High-purity and chemically demanding environments
Utility and manufacturing applications
Equipment & Use-Case Scenarios
- Parallel-shaft centrifugal and process pumps require reliable internal wet sealing
- Applications involving chemically aggressive or corrosive liquids
- General industrial equipment where compact, balanced sealing is preferred
- OEM replacements or upgrades in standard working length seal cavities
Why It Fits These Applications
- Multi-spring configuration: Ensures balanced face pressure across varying operating conditions, enhancing sealing performance
- Monolithic rotary head: Improves thermal stability and structural integrity during service
- PTFE wedge packing: Provides superior chemical resistance compared with standard elastomer secondary seals
- Set-screw driven: Offers secure and reliable mechanical engagement to the shaft
- Interchangeability: Can replace JC Type 9 component seals without modification, facilitating inventory and maintenance flexibility
- Supplied with a stationary seat: Simplifies installation and readiness for common internal wet applications
Installation Guidelines
Pre-Installation Preparation
Clean and thoroughly inspect the pump shaft, seal chamber bore, and gland surfaces. Remove any corrosion, debris, or surface damage to ensure proper sealing surface contact and alignment.
Seal Installation
Slide the IPW-021 seal onto the shaft and position it in the seal chamber with correct orientation. Confirm that the multi-spring assembly, PTFE wedge packing, and set screws engage properly without over-torquing.
Alignment & Fit
Ensure the stationary seat and seal faces are correctly aligned within the gland or housing to maintain even face loading and optimal contact.
Startup Procedure
Once installed, introduce the process fluid and gradually bring the equipment up to operating speed and pressure. Monitor the seal area for leakage, vibration, or temperature anomalies before full duty operation.
Maintenance & Inspection Best Practices
- Routine Visual Checks: Observe the seal area for leakage or abnormal heat
- Seal Face Condition: Inspect seal faces periodically for wear, scoring, or deposits
- Secondary Seal Integrity: Check the PTFE wedge packing for signs of degradation, swelling, or distortion
- Operating Logs: Track pressure, temperature, and speed trends to support predictive maintenance
- Spare Parts Planning: Maintain replacement stationary seats, springs, and wedges to minimise downtime
Service & Support Options
- Application Review: Verify material compatibility and seal selection for specific fluid conditions and operating parameters
- Installation Assistance: Technical guidance to ensure correct orientation and secure engagement
- Preventive Maintenance Scheduling: Establish inspection and replacement intervals based on operating history
- Upgrade Evaluation: If service conditions become more demanding, assess alternative materials or enhanced seal designs to maintain reliability
