Overview
The LAB-100 is a high-performance Labyrinth Seal certified to IP69K, the premium standard for the protection of rotating equipment bearing chambers.
This bearing seal is designed to fit small cross-sectional spaces, typically where lip seals or oil seals have previously been used.

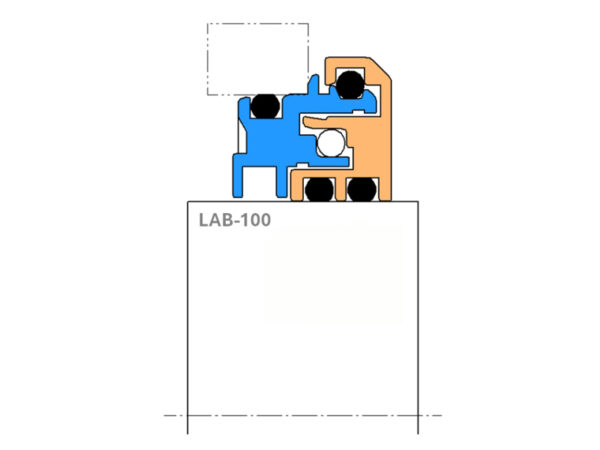

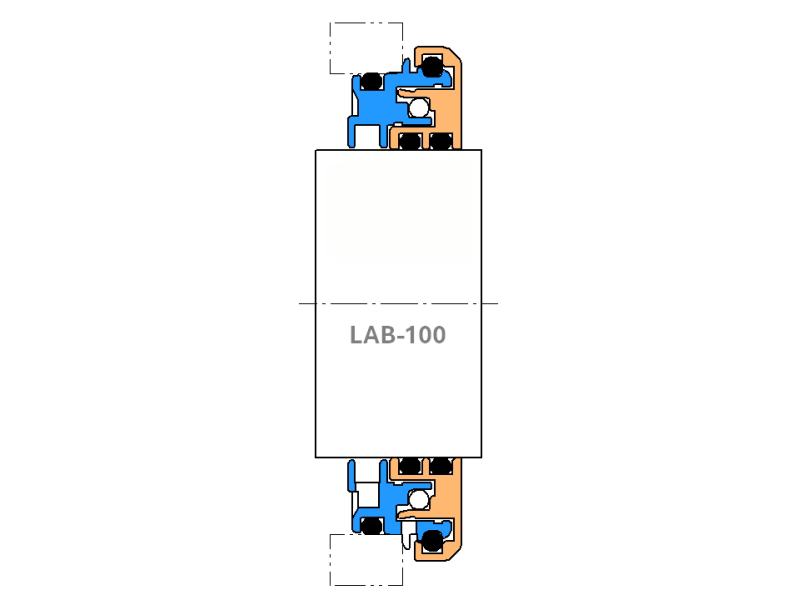

The LAB-100 labyrinth seal design is offered as a complete cartridge solution that installs into rotating equipment similarly to a lip or oil seal.
Product Description
Design Features

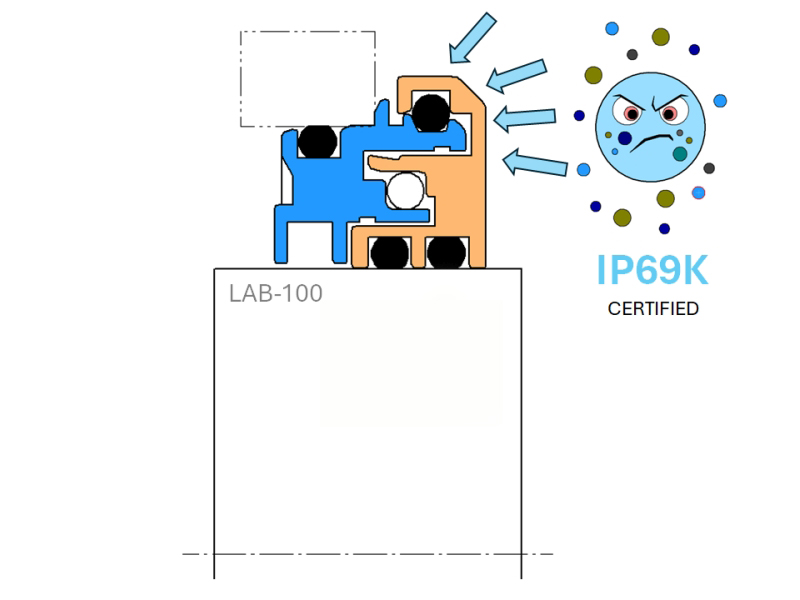

- IP69K certified – protection against dust and high-temperature, high-pressure water; ideal for environments requiring frequent sanitation
- One-piece cartridge solution for simple installation
- Bi-metallic material construction for optimized performance

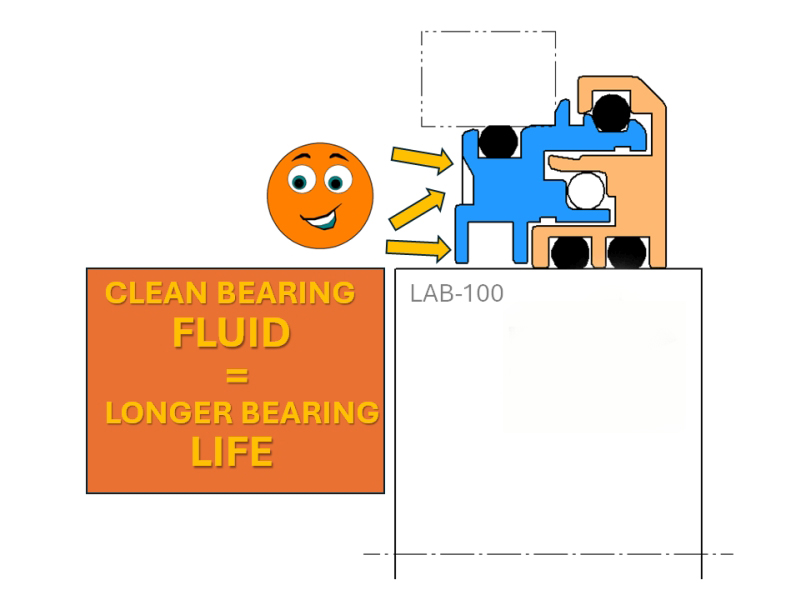

- Inboard oil/bearing fluid repellent orifice
- Outboard water/dust repellent orifice
- Integral PTFE barrier seal
- Twin rotor O-ring drive stabilizes the rotor during operation, allowing close radial clearances between rotor and stator to enhance sealing performance
- Compact design fits most rotor/stator openings in rotating equipment
Technical Specifications
| Seal Shaft Sizes | All |
| Secondary Sealing | Viton, Alfas, ERP, Kalrez, PTFE |
| Shaft Speeds | Up to 4,000 rpm |
