Compact Single Cartridge Mechanical Seal for API Plan 31 Systems
The SPW131 from HydroMax Seal is a single-cartridge mechanical seal engineered for space-constrained applications and compliant with API610 Edition 5 onwards. Specifically designed for API Plan 31 piping arrangements, it offers robust sealing performance when handling process fluids containing suspended particles or solids.
This cartridge seal integrates vortex breakers within the gland plate, reducing turbulence and protecting the stationary face in slurry-rich or particle-laden systems.
Product Description
Design Features
- Flush orifice optimized for Plan 31 systems — engineered to avoid abrasive impact on the stationary seal face when handling particulate-containing flush liquids
- Large ½″ NPT seal port orifices for improved flushing and system compatibility
- Gland plate with integrated vortex breakers to manage flow and reduce erosion risks
- Compact stationary cartridge design with reduced inboard and outboard lengths
- Ideal for small cross-sectional seal chambers in retrofits and compact equipment
- Multi-spring design with springs fully isolated from the process media for extended lifespan
- Hydraulic and pressure-balanced seal face geometry for consistent performance
- Monolithic seal faces provide thermal stability and high-temperature durability

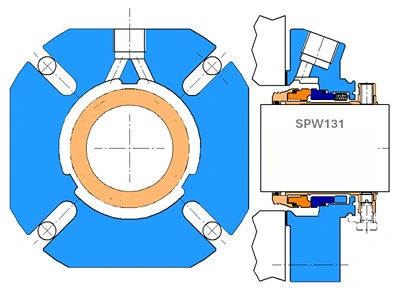

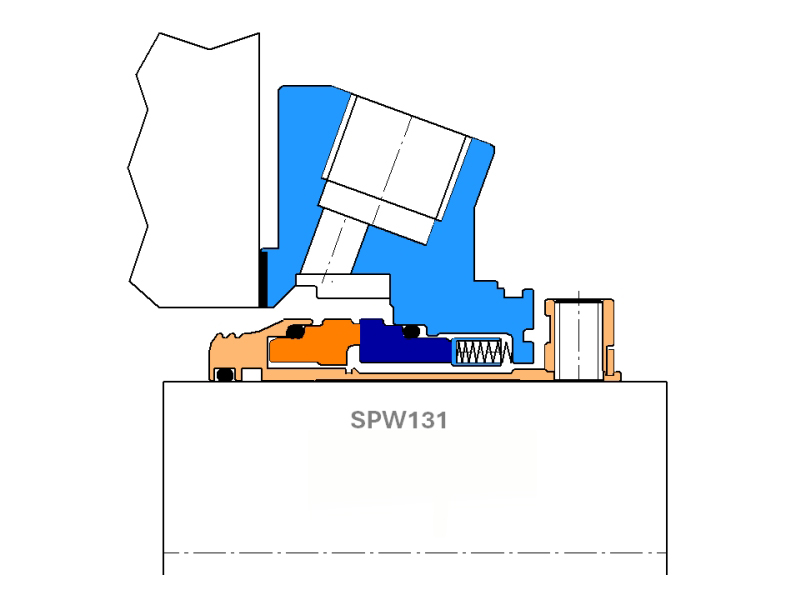

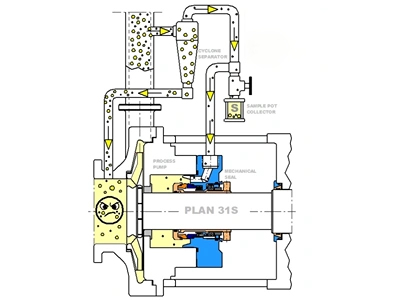

- Designed to be used alongside HydroMax Seal’s Plan 31 Cyclone Separator System and Sample Collection Pot for advanced particulate management
Technical Specifications
- Seal Shaft Sizes: All standard and custom sizes supported
- Inboard Seal Face Combinations:
- TC / TC
- Carbon / TC
- Antimony Carbon / RB SiC
- Gasket Material: Spiral Wound Stainless Steel with Graphite
- Secondary Sealing Materials: Viton, Alfas, ERP, Kalrez
- Maximum Shaft Speed: Up to 4,000 RPM
- Maximum Pressure Rating: Up to 25 Barg
- Instrumentation: Compatible with Plan 31 piping systems
- Operating Temperature: Up to 150°C
The SPW131 embodies HydroMax Seal’s commitment to delivering compact, API-compliant sealing solutions with best-practice engineering. Ideal for applications involving abrasive media, it ensures long-lasting performance with minimal maintenance.
