Design Features

• Large Seal Port Orifices: 1/2″ NPT Barrier Fluid In (BI) and Barrier Fluid Out (BO) for Plan 53 or 52 systems.

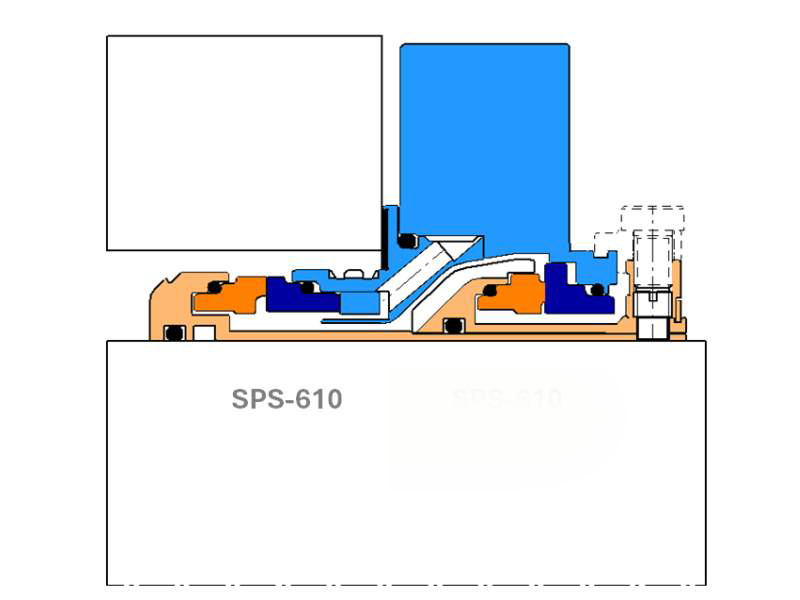

• Efficient Heat Transfer: Barrier fluid flows to inboard seal faces via an integral deflector within the seal gland. The outlet, positioned above the outboard faces, enables effective heat dissipation across both sealing interfaces.

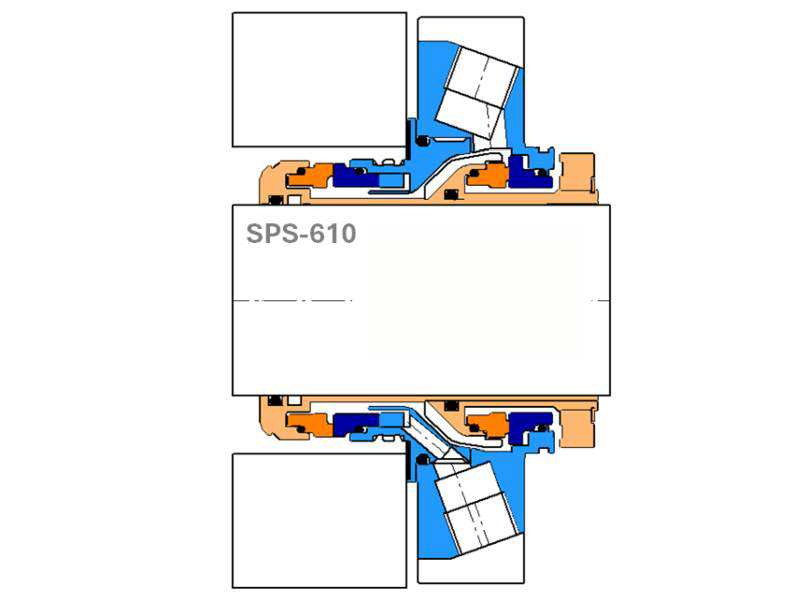

• Gland Insert with Vortex Breakers: Built-in inboard vortex breakers make this seal highly effective for slurry and solids-laden process media.
• API682 Compliant Clearances: Radial clearances between rotary and stationary components follow best-practice standards.
• Monolithic Seal Faces: Enhanced thermal performance in high-temperature environments.
• Self-Aligning Stationary Seal Face: Supports high-speed applications with improved stability.

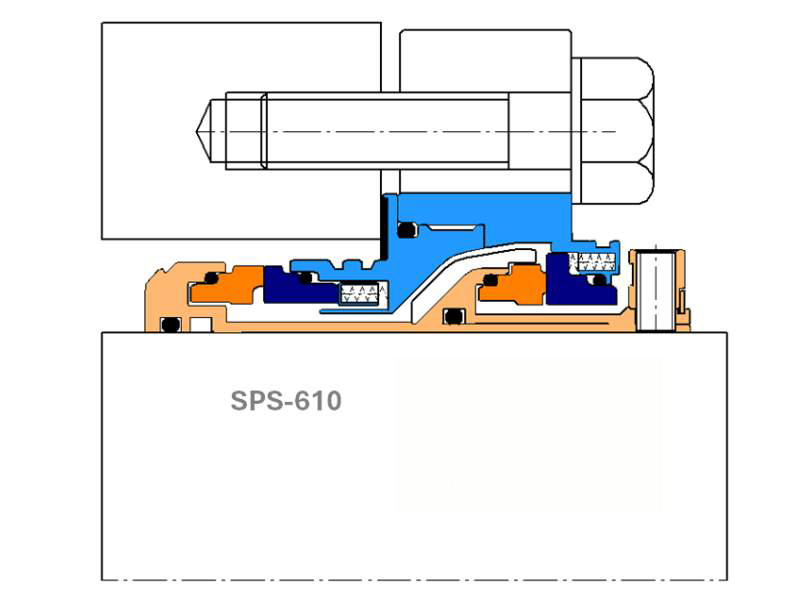

• Multi-Spring Design: Springs are positioned outside of the process fluid for longer life and reduced wear.
• High-Efficiency Pumping Ring: Bi-directional design for optimized barrier fluid movement.

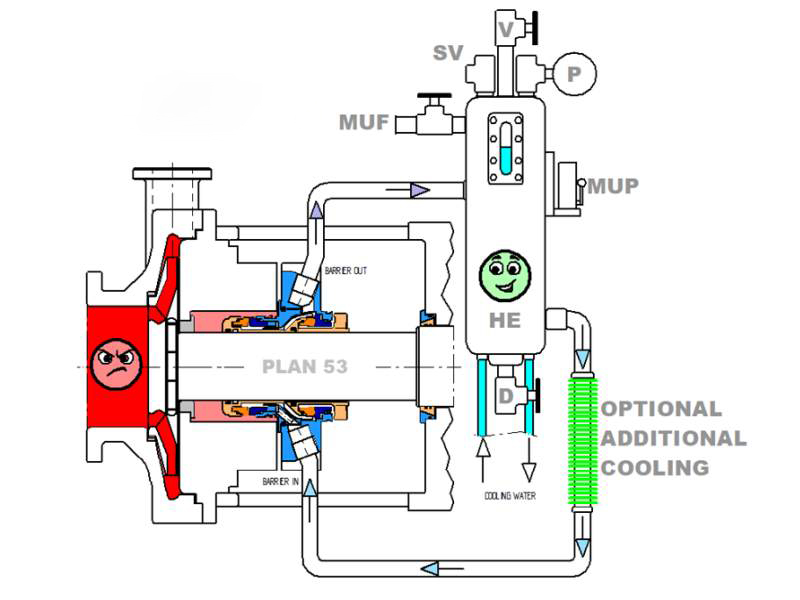

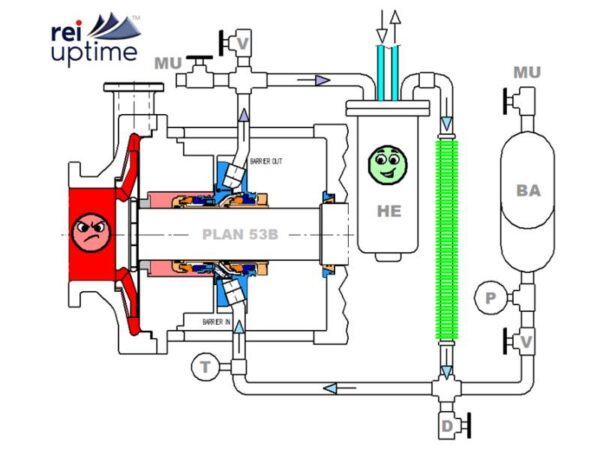

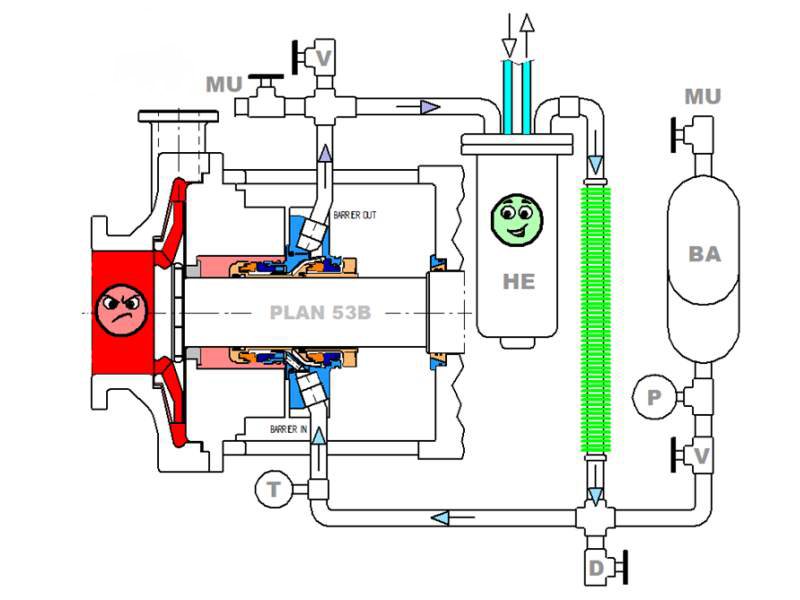

• Seal Support System Compatibility: Designed to work seamlessly with HydroMax Plan 53, 53A, 53B, or 53C systems.

Technical Specifications

• Seal Shaft Sizes: All sizes supported
• System Vessel Sizes: 12L and 28L
• Inboard Seal Face Combinations:
  • TC/TC
  • Car / TC
  • Ant. Car / RB SiC
  • Ant. Car / TC
  • RB SiC / RB SiC
• Outboard Seal Face Combinations:
  • Car / TC
  • Car / RB SiC
  • Ant. Car / RB SiC
  • Ant. Car / TC
  • TC / TC
• Gasket Materials: Spiral Wound Stainless Steel, Graphite
• Secondary Sealing Options: Viton, Alfas, ERP, Kalrez
• Maximum Shaft Speed: Up to 4,000 rpm
• Pressure Rating: Up to 25 Barg
• Instrumentation: Designed for integration with Plan 53 piping systems
• Temperature Rating: Up to 250°C

Built for Slurry Applications

The HydroMax SPS-610 is purpose-built for slurry handling where traditional seal chamber space is limited. Its advanced design delivers high-performance sealing in environments with suspended solids, without compromising reliability or service life.
