HydroMax Seal SPW682-53 | API682-Compliant Double Cartridge Seal for Plan 53 Systems
The SPW682-53 is a double-cartridge mechanical seal featuring an integral, bi-directional barrier fluid pumping ring. Designed in full compliance with API682 standards, it is purpose-built for critical Oil & Gas operations and compatible with Plan 53A, 53B, and 53C piping arrangements on API610 V8 onwards process pumps.
This advanced stationary cartridge seal system delivers outstanding thermal management, high-speed reliability, and robust sealing performance in demanding environments.
Product Description
Design Features

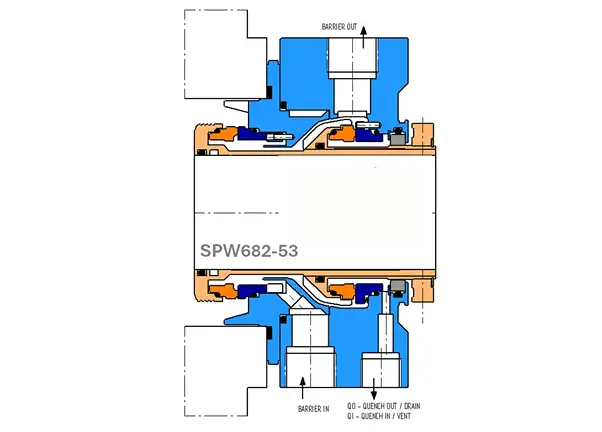

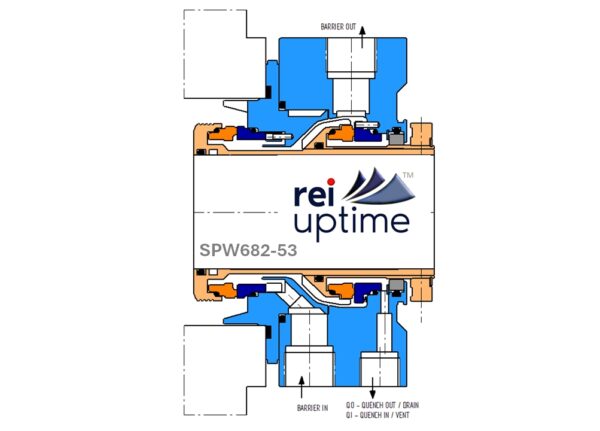

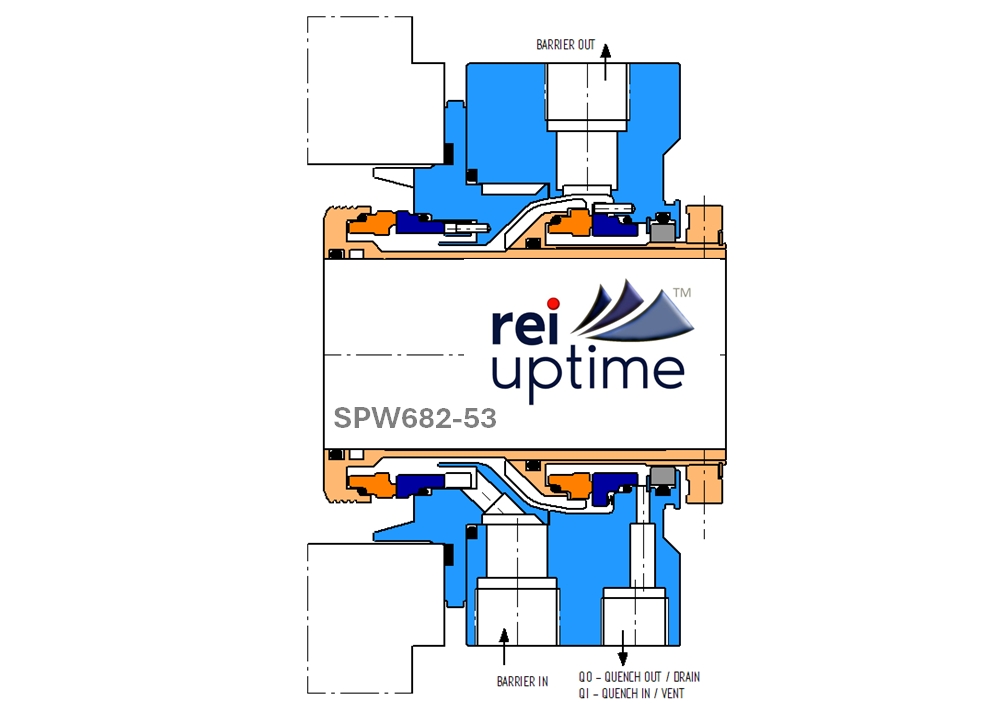

- Large 1/2″ NPT Barrier Fluid In (BI) and Out (BO) ports for Plan 53 and Plan 52 systems

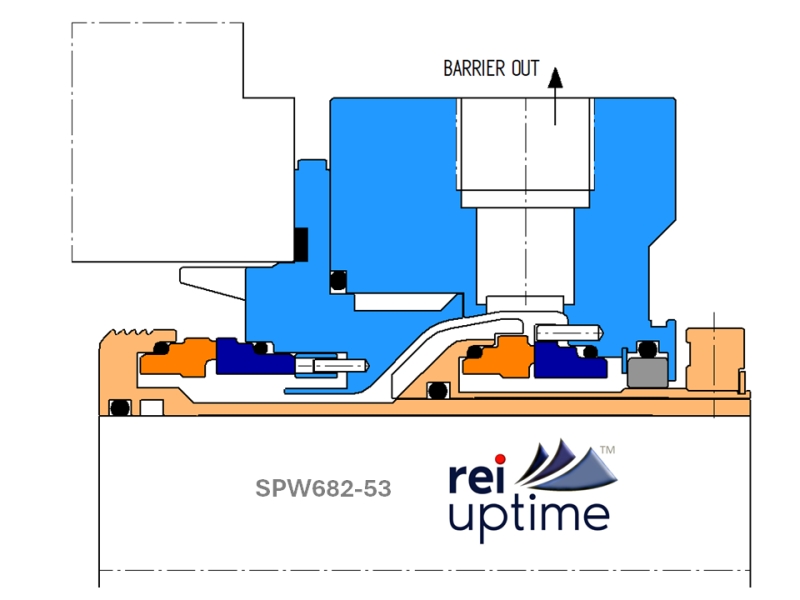

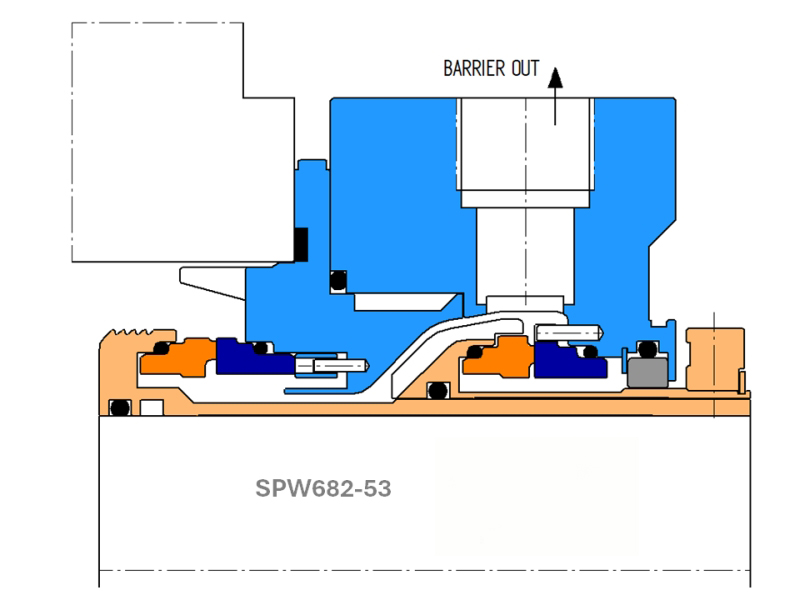

- Integrated deflector ensures barrier fluid reaches inboard faces and exits over outboard faces for effective heat removal
- Plan 62-ready Quench In (Vent) and Quench Drain orifices with outboard floating restriction bush for controlled leakage and seal integrity
- Gland plate with integral inboard vortex breakers – optimized for slurry or solid-laden media
- API682-compliant radial clearances between rotating and stationary elements
- Monolithic seal faces provide enhanced durability at high temperatures
- Stationary design with self-aligning seal face – ideal for high-speed process pumps
- Multi-spring design with springs located outside the process fluid
- Highly efficient bi-directional barrier fluid pumping ring enhances fluid circulation and cooling

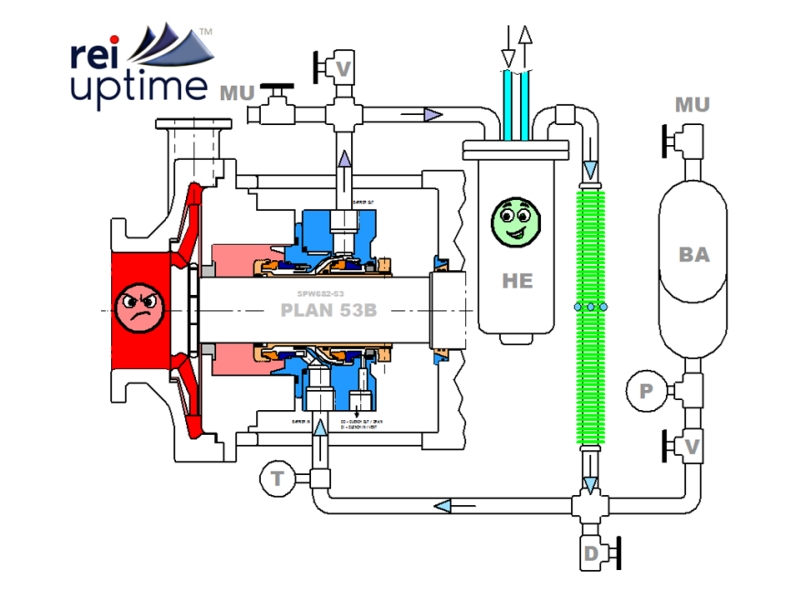

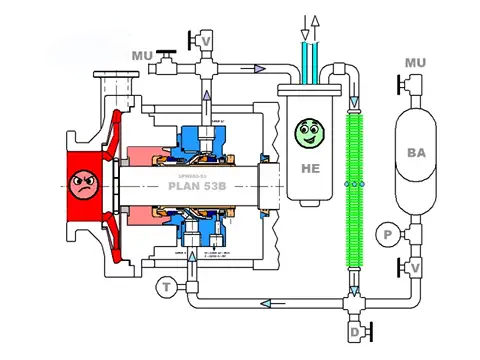

- Designed for use with HydroMax Plan 53A, 53B, or 53C Seal Support Systems
Technical Specifications
| Seal Shaft Sizes | All |
| System Vessel Size | 12L and 28L |
| Inboard Seal Face Combination | TC/TC Car/TC Ant.Car/RB SiC Ant.Car/TC RB SiC/RB SiC |
| Outboard Seal Face Combination | Car/TC Car/RB SiC Ant.Car/RB SiC Ant.Car/TC |
| Gasket | Spiral Wound Stainless Steel, Graphite |
| Secondary Sealing | Viton, Alfas, ERP, Kalrez |
| Shaft Speeds | Up to 4,000 rpm |
| Pressures | Up to 40 Barg |
| Temperatures | Up to 250°C |
| Instrumentation | Used with Plan 53 piping systems |
The SPW682-53 is a rugged and reliable stationary double cartridge seal solution, meticulously engineered to meet the performance, safety, and reliability requirements of the API682 standard.
Typical Applications & Industry Use Cases
The SPW682-53 Double Cartridge Mechanical Seal is a high-performance, API 682-compliant double-cartridge mechanical seal designed for demanding pump applications requiring a pressurized barrier-fluid support system. It is engineered to work with Plan 53A, 53B, and 53C barrier fluid configurations, delivering reliable sealing performance, effective heat dissipation, and enhanced fluid containment in critical services on process pumps.
Industries Served
Oil and gas processing
Petrochemical and refining operations
Chemical processing plants
Water and wastewater systems
Power generation and utility pumping
Heavy industrial fluid transfer applications
Equipment & Use-Case Scenarios
- API 610 process pumps requiring double-seal arrangements with pressurised barrier fluid support
- Services with high temperatures, varying pressures, or media containing suspended particulates
- Applications that benefit from enhanced lubrication and cooling through forced barrier fluid circulation
- Installations where a complete cartridge seal assembly reduces installation time and improves reliability
Why It Fits These Applications
- Pressurised barrier fluid support: Designed for integration with Plan 53A, 53B, and 53C barrier fluid piping systems used in critical services
- Bi-directional barrier fluid pumping ring: Promotes effective circulation to both seal faces, improving heat removal and lubrication
- Vortex breaker features: Help manage particulate-laden fluids and stabilize flow paths over the seal faces
- Outboard floating restriction feature: Offers additional sealing control if the primary faces begin to deteriorate
- Multi-spring design: Provides uniform loading across seal faces while isolating springs from the process fluid to enhance durability
- Monolithic seal faces: Deliver improved resistance to wear and thermal distortion in elevated temperature applications.
- Self-aligning stationary design: Helps maintain optimal face alignment at varying shaft speeds.
Installation Guidelines
Pre-Installation Preparation
Thoroughly clean and inspect the pump shaft, seal chamber bore, and gland surfaces. Remove any corrosion, scoring, or foreign material that could affect alignment or contact of the sealing surfaces.
Cartridge Installation
Insert the SPW682-53 double cartridge seal into the designated seal housing. Verify the correct orientation of the barrier fluid inlet and outlet connections based on the selected Plan 53 barrier fluid configuration. Tighten gland bolts and set screws to the specified torque values.
Barrier Fluid Loop Setup
Connect the pressurised barrier fluid inlet and outlet lines per the selected Plan 53A, 53B, or 53C arrangement. Prime and vent the barrier fluid system thoroughly to eliminate air pockets and confirm continuous circulation before starting the equipment.
Controlled Startup
Begin by initiating barrier fluid circulation, then gradually bring the pump up to operating speed. During this process, monitor barrier fluid pressure and temperature, seal-face temperature, and overall vibration to confirm stable operation.
Maintenance & Inspection Best Practices
- Routine Visual Inspection: Check for signs of leakage, abnormal vibration, or unexpected temperature rises around the seal area
- Barrier Fluid Monitoring: Confirm barrier fluid pressure, flow, and cleanliness at regular intervals to detect restrictions or contamination early
- Seal Face Condition: During scheduled maintenance, inspect both inboard and outboard seal faces for wear, deposits, or damage
- Vortex Breaker & Restriction Area Inspection: Evaluate these regions for solids buildup or erosion that could impede barrier fluid flow
- Operating Logs: Keep detailed records of operating parameters (pressure, temperature, shaft speed) to support predictive maintenance planning
Service & Support Options
- Application Review: Verify that materials of construction and barrier fluid plan selection are suitable for your specific fluid chemistry, temperatures, and pressures
- Installation Assistance: Technical support to confirm correct cartridge seating, barrier fluid port orientation, and commissioning procedures
- Spare Parts Management: Maintain an inventory of replacement seal faces, gaskets, and barrier loop components to minimize downtime
- Preventive Maintenance Planning: Establish inspection and parts replacement schedules based on operating history and duty cycle
- Performance Upgrades: If operating conditions become more severe (for example, higher temperatures, abrasive fluids, or elevated pressures), evaluate alternative face materials or enhanced configurations to sustain optimal performance
